In commercial wineries, fermentation tank performance is measured not only by capacity or material grade, but by the reliability of every sanitary connection. Among all sealing points, Tri-Clamp connections are the most frequently assembled and disassembled components in commercial wine fermentation tanks, and also the most common source of micro-leaks, oxygen ingress, and contamination risks if maintenance is not executed with precision. For wineries operating at scale, a single compromised clamp can translate into product loss, inconsistent fermentation, or costly downtime.

This article focuses exclusively on advanced, field-proven inspection and maintenance practices for Tri-Clamp connections in stainless steel wine fermenters. Drawing on HAISHUN’s manufacturing standards and long-term export experience in North America, Europe, Australia, and Japan, it provides practical, production-level guidance aimed at zero-leak performance in real commercial environments.

Why Tri-Clamp Integrity Directly Impacts Fermentation Stability

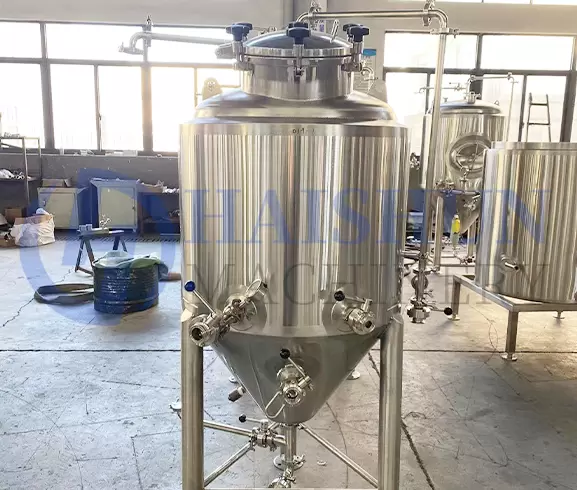

In modern wineries, Tri-Clamp fittings are integral to racking arms, sample valves, CIP ports, pressure relief devices, manways, and thermowells. In commercial wine fermentation tanks, these interfaces operate under repeated thermal cycling, CO₂ pressure fluctuations, and aggressive cleaning regimes.

Even when tanks are designed for 14.7 PSI working pressure and hydrostatically tested at 30 PSI, as with HAISHUN fermenters, sealing performance ultimately depends on:

• Clamp geometry consistency

• Gasket compression uniformity

• Surface finish at ferrule faces

• Assembly torque discipline

Leakage at Tri-Clamp points is rarely catastrophic; instead, it is incremental and often invisible—manifesting as dissolved oxygen pickup, volatile aroma loss, or biofilm formation over time.

Common Failure Patterns Observed in Commercial Wineries

Based on feedback from international wineries using commercial wine fermentation tanks ranging from 1 barrel to 100 barrels, several recurring issues emerge:

1. Ferrule Face Micro-Deformation

Repeated over-tightening can slightly distort ferrule lips, preventing uniform gasket compression even when clamps appear secure.

2. Gasket Material Mismatch

Using generic EPDM gaskets in high-acid or high-temperature CIP cycles accelerates compression set and chemical degradation.

3. Inconsistent Clamp Loading

Uneven tightening—especially with wingnut-style clamps—creates asymmetric sealing pressure and localized leak paths.

4. Residual CIP Chemistry

Alkaline or acidic residues trapped behind gaskets can crystallize, preventing full seating during reassembly.

Inspection Protocol for Zero-Leak Tri-Clamp Connections

For wineries targeting long-term process stability, Tri-Clamp inspection should be standardized, documented, and scheduled—not reactive.

Step 1: Visual and Tactile Ferrule Assessment

Before gasket installation, inspect ferrule faces under strong directional lighting. Look for:

• Radial scratches crossing the sealing plane

• Flattened or rolled ferrule edges

• Heat tint discoloration (indicating past welding stress)

HAISHUN tanks use 100% TIG-welded joints with sanitary interior polish, reducing the likelihood of weld-induced distortion, but field damage can still occur during handling.

Step 2: Gasket Surface Integrity Check

A gasket that “looks fine” may already be compromised. Replace gaskets showing:

• Permanent flattening beyond 10–15% original thickness

• Surface micro-cracking

• Sticky or chalky texture

For commercial wine fermentation tanks, food-grade silicone or PTFE-encapsulated gaskets typically outperform standard rubber under repeated CIP exposure.

Step 3: Dry-Fit Alignment Verification

Before clamping, assemble ferrules and gasket without tightening. Confirm:

• Full concentric alignment

• No visible gasket extrusion

• Uniform contact around the circumference

Misalignment at this stage guarantees uneven compression later.

Step 4: Controlled Clamp Tightening

Apply torque gradually and evenly. Avoid “hand-tight plus extra” habits. In larger diameter connections, alternating tightening positions helps distribute load.

While Tri-Clamps are deceptively simple, disciplined assembly practices significantly extend service life in commercial tanks.

Pressure and Vacuum Testing Beyond Commissioning

Many wineries pressure-test tanks only at installation. However, in high-throughput operations, periodic testing is essential.

For HAISHUN commercial wine fermentation tanks, which are factory-tested at 30 PSI, wineries can implement:

• Low-pressure air tests with soap solution at all Tri-Clamp joints

• CO₂ hold tests during idle periods

• Vacuum integrity checks after CIP cycles

These tests reveal sealing degradation before it impacts product quality.

CIP Interaction with Tri-Clamp Seals

Clean-in-place systems are often the hidden variable in clamp leakage.

Aggressive CIP parameters—high temperature, high velocity, and concentrated chemicals—accelerate gasket fatigue. Optimized practices include:

• Matching gasket material to CIP chemistry

• Avoiding unnecessary temperature spikes

• Removing and inspecting critical Tri-Clamp points on a defined cycle

In pharmaceutical-grade manufacturing environments, where HAISHUN’s tank standards originate, gasket rotation schedules are common. Applying similar discipline in wineries improves consistency and compliance.

Design Factors That Reduce Long-Term Leak Risk

Not all commercial wine fermentation tanks are equally maintainable. Several design choices directly affect Tri-Clamp reliability:

• Precision-machined ferrules with tight tolerances

• Sanitary interior polishing to minimize residue buildup

• Proper headspace design (HAISHUN fermenters maintain an average 25% headspace) to reduce pressure stress

• Custom tank height and layout to minimize side-load stress on connections

These factors explain why industrial tank manufacturers adhering to bio-pharmaceutical standards typically achieve lower lifetime leakage rates.

Regulatory and Certification Context

International markets increasingly align winery equipment expectations with broader food and pharmaceutical standards. Certifications such as CE, TUV, PED, BV, and GMP—held by HAISHUN tanks—reflect not only material compliance, but also pressure integrity, weld quality, and sanitary design principles.

According to data from European hygienic engineering groups, over 60% of contamination incidents in liquid processing systems originate at connection interfaces rather than vessel walls. This underscores why Tri-Clamp inspection is not a minor maintenance task, but a core quality-control activity.

FAQ: Tri-Clamp Maintenance in Commercial Wine Fermentation Tanks

How often should Tri-Clamp gaskets be replaced?
In high-frequency production, critical gaskets should be replaced every 6–12 months, or sooner if exposed to aggressive CIP cycles.

Is higher tightening force better for sealing?
No. Over-tightening increases ferrule deformation and gasket extrusion, ultimately increasing leak risk.

Can leaks occur without visible liquid loss?
Yes. Micro-leaks often present as oxygen ingress or aroma loss rather than dripping wine.

Do larger tanks require different inspection frequency?
Yes. Tanks above 50 barrels experience higher mechanical and thermal stress and should be inspected more frequently.

Conclusion: Maintenance Discipline as a Competitive Advantage

In competitive global wine markets, operational consistency is a differentiator. For wineries using commercial wine fermentation tanks, zero-leak Tri-Clamp performance is not achieved through hardware alone, but through disciplined inspection, informed material choices, and standardized assembly practices.

HAISHUN’s approach—rooted in bio-pharmaceutical manufacturing standards, advanced European and U.S. technology adoption, and large-scale export experience—demonstrates that long-term sealing reliability is engineered, not improvised. By treating Tri-Clamp maintenance as a core production process rather than a routine task, wineries can protect product integrity, extend equipment life, and support sustainable growth.
