Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid
Customized size SS Homogenizer Tank for Viscosity Liquid

Customized size SS Homogenizer Tank for Viscosity Liquid

SS304/SS316/SS321

Single Layer: tank body

Double Layer: tank body + cooling/heating jacket OR tank body + insulation

Three Layer: tank body + cooling/heating jacket + insulation


Homogenizer is a type high speed mixer, speed could get 2000-3000rpm. Both of top or bottom mixing that can be combined with other types of mixer. But only in the center of the tank, can not tilt. Only in this way can the material in the solution be evenly distributed.



Equipment Introduction

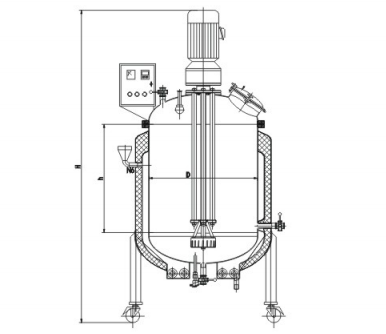

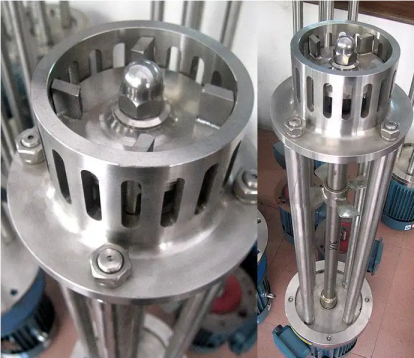

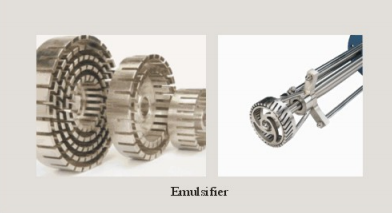

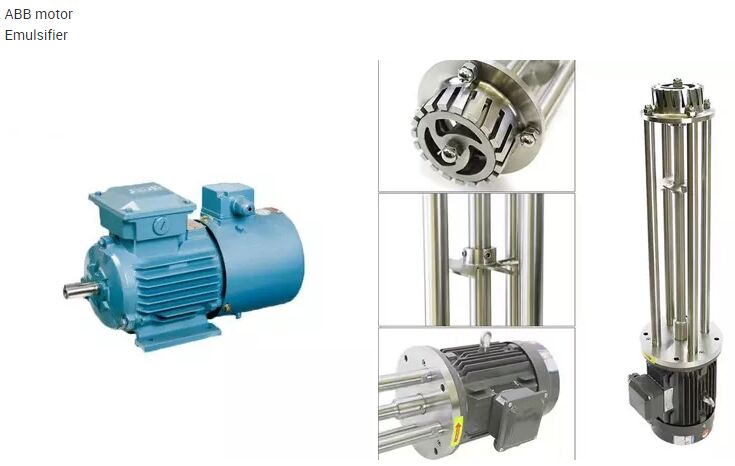

Homogenizer: 1. Itis made of sanitary stainl ess steel 316L 2.The volumeis100L-1000L 3. It is made of three-layer with whole jacket and insul ati on filled withPU which is importedfrom Japan. 4.The equipment is heatedby electric elements 5. Dish top and cover, cylinder body . The top is connected by flangewhich can be openedeasily for cleaning and mantainance.6. As topolish,interior layer and dish top will adopts 3A mirror polishwhile exteriorlayer and conical bottom will adopts 2B satin polish7.As to transiti on ofinterior, we will adopt arc to make sure that thereisno dead corner of sanitati on. 8ABB or Siemens motor 9.Emulsifier with maximum speed of 2900RPM The speed isadjustable with inverter in the control panel10.Legs with wheel for moving 11.There is a control panel together with the tank used for controllingtemnperature,electric elements on-of,motor on-off,speed adjust.12.38mm tri-clamp outlet, 38mm tri-clamp inlet with butterfly valve,32mm cleaning hole,300mm manway,DN100 sight glass,DN100light glass. 13. Configuration: inlet, outlet, spraying ball,manway,wheels, motorgear box,emulsifier, sight glass, light glass, temperature probeelectric element, water inlet and outlet.
Equipment Project
