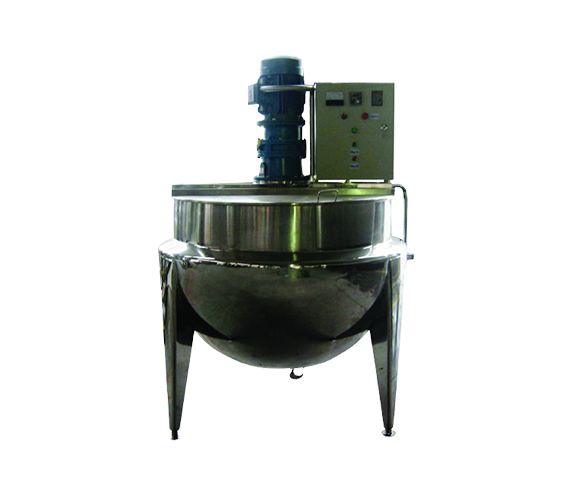

Jacketed kettle
Jacketed kettle

Jacketed kettle

Volume: 50L ~ 500L based upon customer requirements.

Available in either sanitary 304 of 316L with Tri-Clamp connections.

Interior finish surface Ra<0.22µm ~ 0.6µm or finer

Outer surface can be polished, wire-drawn, and sandblasted according to customer requirements.

Can be designed with low heating, cooling, a high-speed mixing system, a sealing pressure system, a vacuum system, a measuring system, and more.

Based on mixing materials and requirements of the mixing effect, the structure of the impellers can be either turbine type, paddle, anchor type, frame type, screw conveyor or other.

Equipment Introduction

Jacketed kettle also called as jacketed evaporative cooker or thickening pan. Adopt stainless steel as its main construction material. Using indirect heating make it easy to clean. The double wall structure which make up a jacket for heating medium such as steam and thermal oil result to a faster heating effect compared with normal cooking pans.

Use a hand wheel to discharge the cooked product so there is no material accumulation at drainage opening. When equipped with anchor or scraper type agitator,jacketed kettle can be also used to the production of various of liquids which are sticky or thick.



·Single-layer stainless steel structure.

·The materials are all sanitary stainless steel.

·Structural design is very user-friendly, and can be operated.

·The transition section of the simplified inner wall adopts arc transition to ensure sanitation and no dead angle. The structure of the mixing tank: mixing tank body, mixing tank cover, agitator, support, transmission device, shaft sealing device, etc., and heating device or cooling device can also be configured according to process requirements.

Tank configuration:

Quick opening hole

Various types of CIP cleaners

Anti-fly and insect sanitary breathable cover

Adjustable triangle legs

Detachable feed tube kit

Thermometer (can be configured according to the requirements of each household) one ladder (according to customer requirements)

Liquid level gauge and liquid level control (configured according to customer requirements)

Anti-vortex plate

Device Configuration:

Volume: 1BBL~100BBL

Material SS304

Tank body: single layer, double layer: liner + jacket Three layers: liner + jacket + heat preservation (outsourcing)

Polishing: mirror inside, matte outside / pickling inside, wire drawing outside


Tank configuration:

Quick opening hole

Various types of CIP cleaners

Anti-fly and insect sanitary breathable cover

Adjustable triangle legs

Detachable feed tube kit

Thermometer (can be configured according to the requirements of each household) one ladder (according to customer requirements) Liquid level gauge and liquid level control (configured according to customer requirements)

Optional: sight glass, sight light, anti-vortex plate

Equipment Project
Material* Interior: 304SS or 316LSS
* Jacket: 304SS
* Insulation: PU or Rockwool
* Legs: 304SS
DesignThree-layer with heating jacket and insulation
Mixing typeframe mixer with scraper
FinishMirror Polished inside and Satin polish outside
Heating Methodsteam or gas burner
Product NameJacketed kettle
Configuration1.hinged top
2.CIP Spraying Ball
3.control panel(option)
4.Temperature Sensor
5.tilt type for easy drain
6. fixed leg
Agitator power0.55kw -75KW
